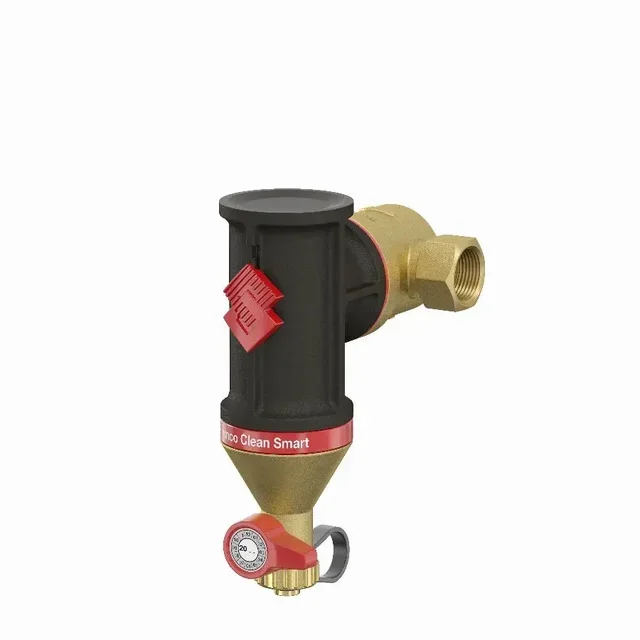

The Flamco Clean Smart dirt separators represent a technically advanced solution for water treatment in heating and cooling circuits.
This range relies on an innovative concept that guarantees optimal performance. It now sets the standard for filtration in thermal installations.
These devices ensure the extraction of the finest particles present in the circulating fluid. Their design allows for virtually maintenance-free operation while minimizing pressure drops as much as possible.

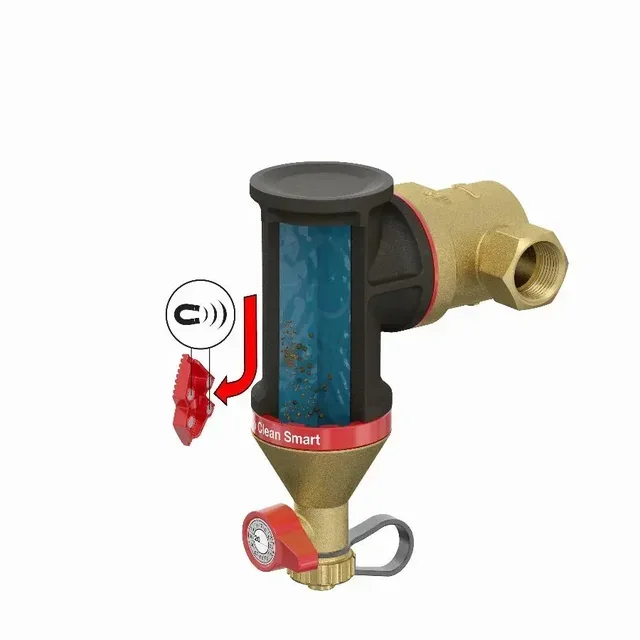

Four neodymium magnets are concealed within the external logo of the Flamco Clean Smart and Flamcovent Clean Smart models. Each generates a magnetic field of 5,855 Gauss. Positioned facing the outlet orifice, they instantly attract and retain ferrous particles, including those smaller than 4 µm.
Technical advantages:
- 60% higher efficiency than conventional separators
- Compatibility with flow velocities up to 3 m/s
- Installation possible on horizontal or vertical pipelines

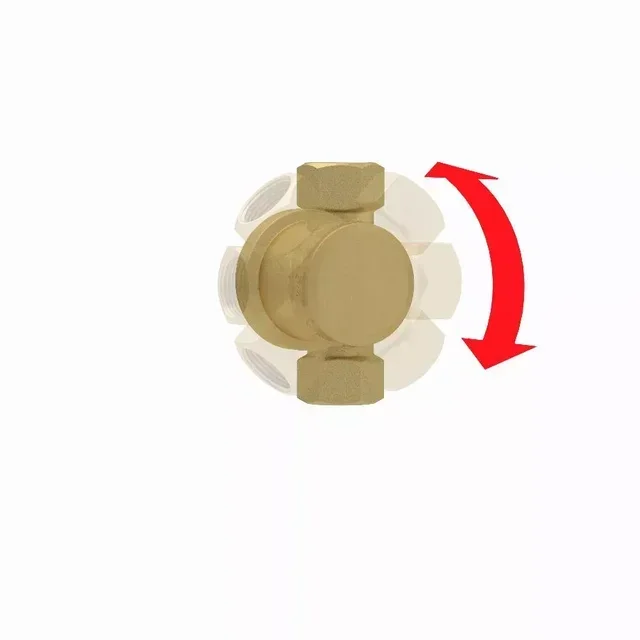

- 360° swivel connection without constrained positioning
- Reduced footprint and lightweight design
Features:
- Connection dimensions available up to 2"
- Minimal pressure drops preserving overall efficiency
- Stable performance throughout the entire service life
- Construction in high-quality brass and polymers
Operating conditions:
Service temperature: -10 °C to 120 °C
Operating pressure: 0.2 to 10 bar
