Name: Joist Hanger 2-Part SIMPSON - Size 30x158x84mm - Thickness 2mm - Model SDED380/30
SKU: SAA30060
Price: 1.48 EUR
Availability: InStock
Rating: 4.1 (67 reviews)

Joist Hanger 2-Part SIMPSON - Size 30x158x84mm - Thickness 2mm - Model SDED380/30

4.1(67 reviews)

2.11€incl. tax·1.76€excl. tax

incl. tax·1.23€excl. tax-30%

In Stock All in your cart Out of Stock

Joist hanger in galvanized steel 2 mm, compatible with wood/concrete/steel. For new construction and renovation. Supplied with complete fixing methods.

Secure Payment

3D Secure encrypted transactions.

Easy returns

Return possible until 24 April 2026

Expert Advice

Our team is here to guide your choice.

Material & Compliance

Manufactured from S250GD + Z275 galvanized steel compliant with NF EN 10346 standard. 2 mm thickness ensuring robustness and longevity in demanding environments.

Versatility of Use

Solution suitable for both new construction projects and renovation sites. Compatible with load-bearing elements in wood, concrete or steel, and supported elements in solid wood or composite.

Main Applications

Ideal for flooring and reinforcement of existing joints. Designed to meet the requirements of modern and traditional timber structures.

Fixing Methods

Wood assembly	CNA nails Ø 4.0 × 50 mm — Lag screws and bolts Ø 10 or Ø 12 mm
Concrete support	WA M12-104/5 mechanical anchor bolt — AT-HP Resin chemical anchoring + LMAS M12-150/35 threaded rod
Hollow masonry	AT-HP or POLY-GP resin + LMAS M12-150/35 + SH M16-130 sleeve (verification required)

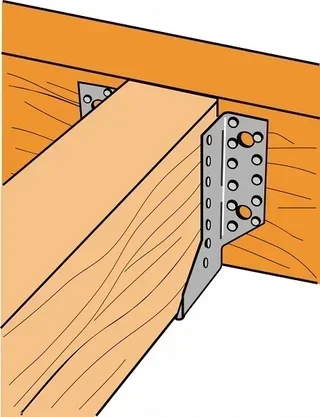

Installation on Wood

Mark the beam axis on the supporting element. Position the joist hanger and perform preliminary fixing of both flanges. Adjust the opening slightly wider at the top to facilitate insertion. Complete the fixing on each flange, then insert the beam and secure it by partial or complete nailing.

Delivery subject to availability. Verify load-bearing capacity of anchors on hollow masonry before installation.
