Name: MANTION Frame Bracket Mounting on Edge - M10 Hanging Screw - 80kg Load - Ref. 235A
SKU: FFA10050
Price: 13.77 EUR
Availability: InStock
Rating: 4.6 (118 reviews)

MANTION Frame Bracket Mounting on Edge - M10 Hanging Screw - 80kg Load - Ref. 235A

4.6(118 reviews)

21.19€incl. tax·17.66€excl. tax

incl. tax·11.47€excl. tax-35%

In Stock All in your cart Out of Stock

Sliding gate roller brackets. 40 kg capacity, compatible with 35x30 mm rail. Reliable mechanism with steel or delrin rollers. Face-fix or overlay mounting. Anti-corrosion treatment.

Secure Payment

3D Secure encrypted transactions.

Easy returns

Return possible until 24 April 2026

Expert Advice

Our team is here to guide your choice.

Reliable Mechanism

Designed for linear translations, these brackets offer optimal stability thanks to continuous contact between the brackets and the rail. The anti-corrosion treatment applied to all components ensures increased durability in all conditions.

Rollers & Bearings

The 235A bracket integrates 2 steel rollers, while the 235D bracket features a delrin roller. All rest on a roller cage according to Mantion's exclusive process. The 2235 series benefits from ball bearings for superior sliding fluidity.

Capacity & Mounting

The 235 bracket supports a load of 40 kg and adapts to tubular rails of 35 × 30 mm. Two mounting modes are possible: surface or overlay. Compatibility assured with plates reference 36 (overlay mounting) and reference 37 (surface mounting).

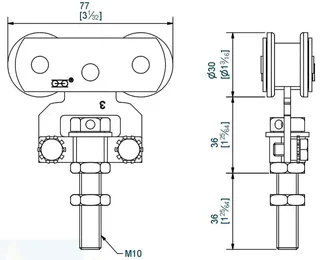

Technical Specifications

235A Bracket	2 steel rollers on roller cage
235D Bracket	Delrin roller on roller cage
2235 Series	Ball bearings
235 Bracket Capacity	40 kg
Compatible rail	Tubular 35 × 30 mm
Plate 36	25 × 100 mm, Ø M10 drilling (overlay)
Plate 37	25 × 62 × 95 mm, Ø M10 drilling (surface)

Sliding gate hardware range: upper assembly (rail, fixing bracket, support, sleeve and bracket) and lower assembly (rail, base guide, stop and handle). Sold individually per bracket.
