Simpson SAI380/76/2 Joist Hanger with Inner Flanges - 76x152x76 mm - 2 mm Thickness

Technical Composition

This timber connector is made from galvanized steel S250GD + Z275 compliant with NF EN 10346 standard. The 2 mm thickness ensures optimal resistance to mechanical stress and excellent long-term durability.

Product Benefits

Installation proves particularly quick and easy. The final assembly features a discreet and neat appearance, preserving the aesthetics of your structure while ensuring a high-performance structural connection.

Compatibility

Supporting element accepted: solid wood, composite wood, glulam. Supported element compatible: solid wood, glulam, composite wood.

Application Areas

Designed for the construction of joists and purlins, the assembly of smooth beams and cladding studs, as well as post-beam structures.

Installation Guide

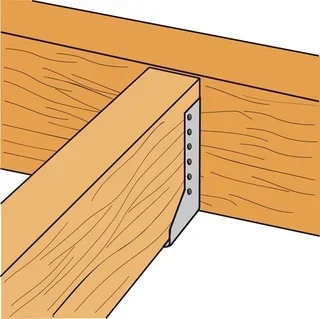

Installation on wood: Mark the location of the supported beam on the supporting element. Position the connector and perform preliminary fastening of the flanges on both sides. Adjust the opening of the connector according to the markings by keeping it slightly wider at the top than at the bottom to facilitate insertion. Complete the full fastening on each flange. Insert the supported beam into the connector and secure it by partial or full nailing.
