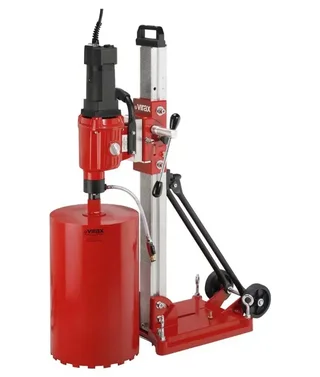

VIRAX 350 Electric Core Drill on Stand - Model 50130

2500 W Motor

This electric core drill delivers a power output of 2500 W and features four distinct levels of protection. The electronic system monitors overloads and signals anomalies via indicator light. A thermal safety mechanism automatically activates in case of excessive heating. The disengagement mechanism protects the motor shaft if the core bit jams. Finally, an oil pump ensures permanent lubrication of the gears to preserve their longevity. The transmission offers two rotation speeds: 360 and 850 rpm under load. The unit features a UNC 1.1/4" connection and a PRCD safety switch.

Aluminum Stand

The support consists of a reinforced aluminum column with anti-vibration bars. The engraved millimeter scale allows drilling across the entire useful height. The chuck inclination adjusts from 0° to 45°. The adjustable brake and stop button simplify motor mounting. A centering indicator and bubble level ensure precise positioning. The stable base includes four adjustment nuts and accepts mounting via clamping bolt or vacuum pump. The lateral feed lever detaches without tools. Wheels and an integrated handle facilitate on-site mobility. Dimensions: 538 × 330 × 1110 mm.

Supply

The set includes for the core drill: two open-end wrenches SW 32 and SW 41, the complete water cooling circuit with ball valve, an additional handle for transport and installation. For the stand: the ready-to-use mounting kit with clamping bolt, reusable plugs for hollow blocks and non-reusable plugs for concrete. Diamond core bit not included.
